We explore interpretable and compute-efficient Deep RL for autonomous driving. The poster highlights two complementary contributions:
- (A) Interpretable perception with a latent world model trained under maximum-entropy RL. The latent state summarizes multi-modal inputs (camera + LiDAR) and is decoded into a human-readable bird’s-eye semantic mask, letting us inspect what the agent believes it sees:contentReference[oaicite:2]{index=2}.
- (B) Interpretable control with ICCT — Interpretable Continuous Control Trees. These are compact decision trees where each leaf is a sparse linear controller, allowing us to trace why the agent chose a particular action:contentReference[oaicite:3]{index=3}.

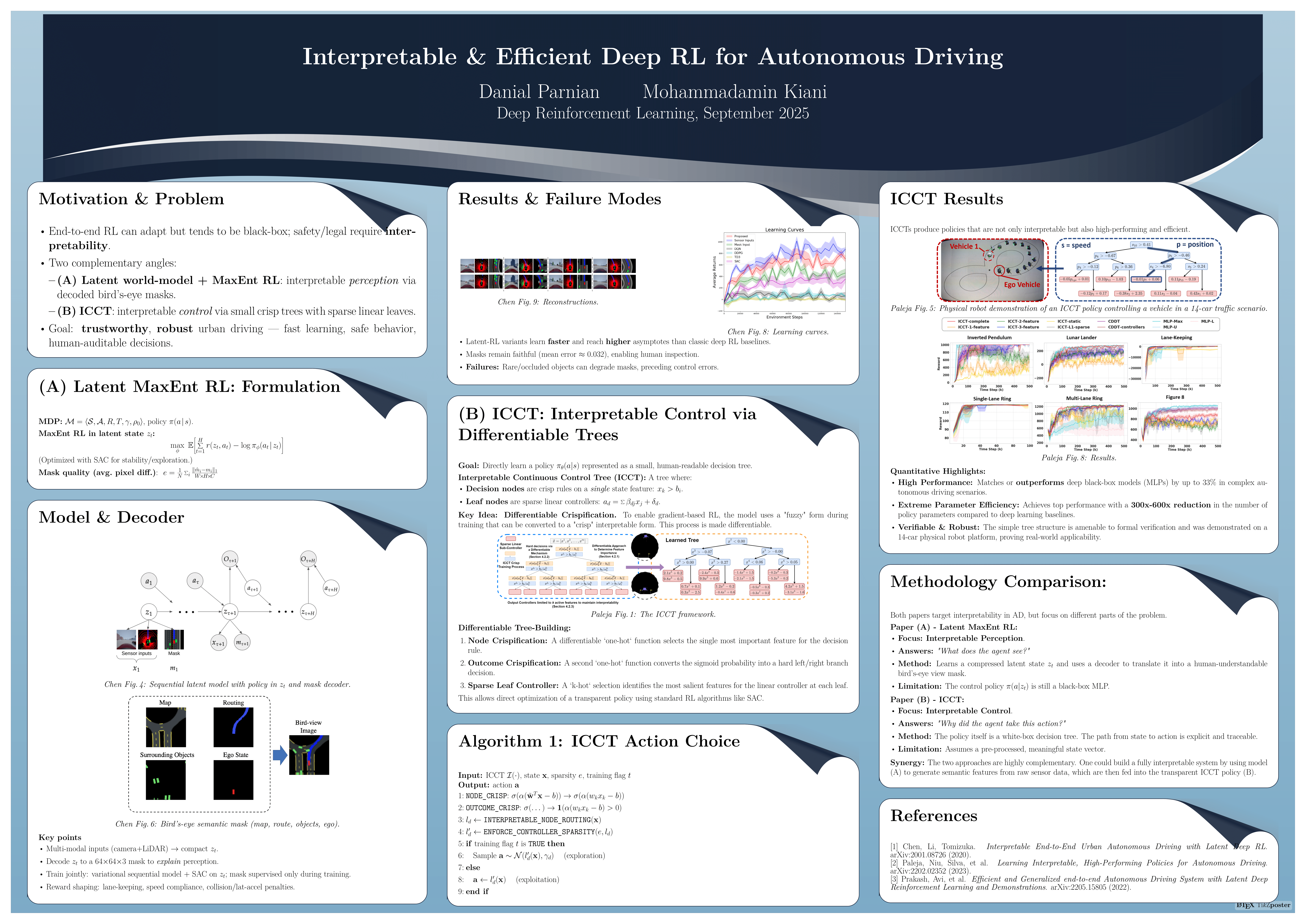

Poster overview: the complete pipeline, including perception via latent MaxEnt RL and control via ICCT, with interpretability probes and comparative results.
Motivation & Problem
Deep RL promises adaptive, end-to-end driving policies, but practical deployment is hindered by two issues:
- Black-box behavior. Policies based on deep networks are notoriously hard to audit. For a safety-critical application like autonomous driving, stakeholders need human-auditable explanations.
- Scalability. Urban driving involves complex interactions and dense traffic, requiring algorithms that can learn efficiently from limited simulation data.
Our goal is to build policies that are both trustworthy and robust, while offering fast learning and transparent decision-making. We approach this from two angles:
(A) interpretable perception and (B) interpretable control.
(A) Latent MaxEnt RL — Interpretable Perception
Traditional end-to-end RL maps raw sensor data directly to control, leaving little room for interpretation. We instead insert a latent world model:
- The environment is modeled as an MDP
$\mathcal{M}=\langle\mathcal{S},\mathcal{A},R,T,\gamma,\rho_0\rangle$. - A compact latent state $z_t$ encodes the scene, learned from multi-modal inputs (camera + LiDAR).
- Control is optimized with maximum-entropy RL (SAC in the latent space):
$$ \max_{\phi}; \mathbb{E}\Big[\sum_{t=1}^H r(z_t,a_t); -; \log\pi_\phi(a_t\mid z_t)\Big]. $$
A decoder reconstructs a semantic bird’s-eye mask from $z_t$, used both as supervision during training and as an interpretability tool at test time.

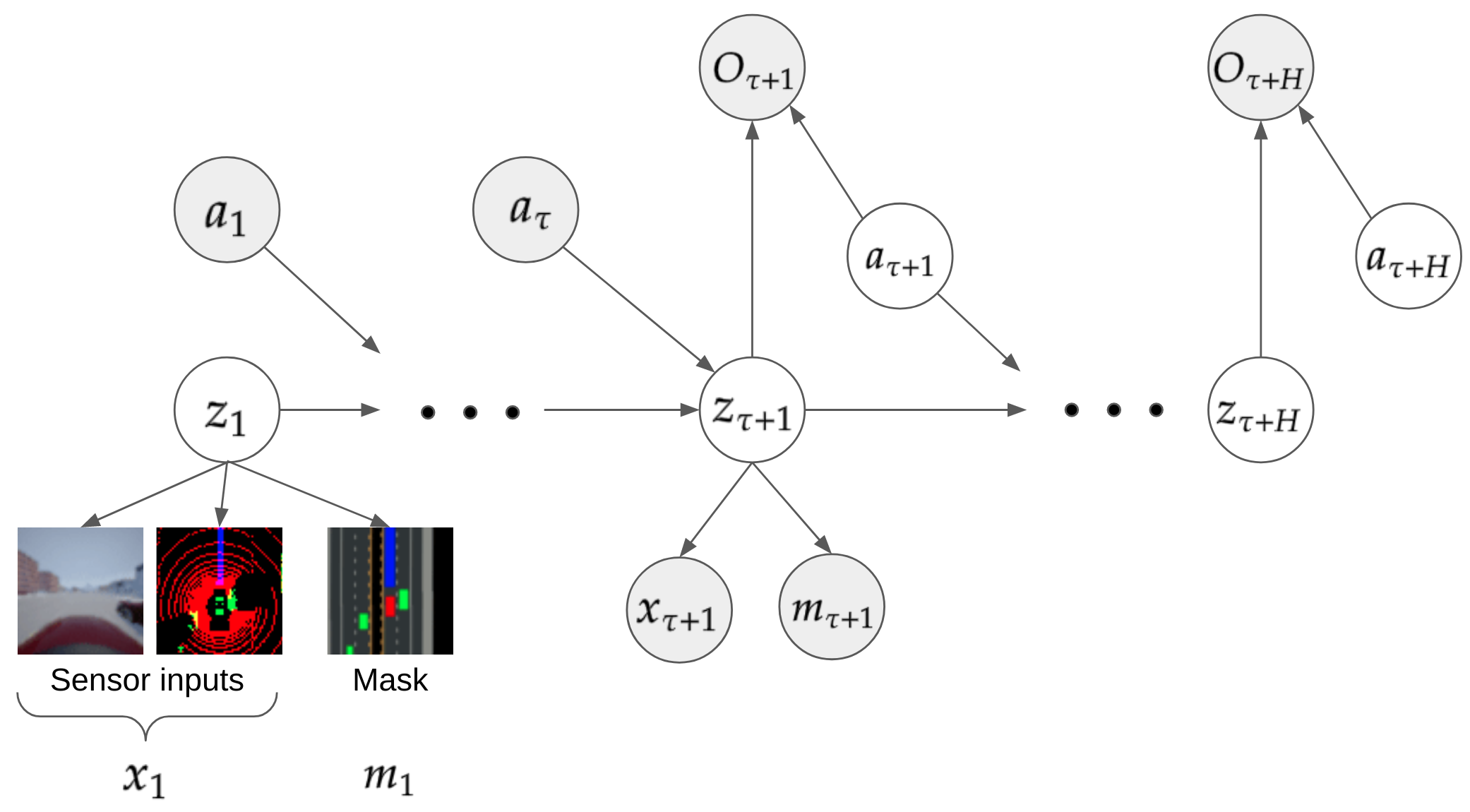

Sequential latent model: the agent acts in compact latent states $z_t$, while a decoder reconstructs a semantic mask for interpretability. Example decoded semantic mask. It highlights the drivable map, planned route, surrounding vehicles, and the ego car — making the agent’s perception directly interpretable.
Mask quality metric (average pixel difference, lower is better):
$$
e = \frac{1}{N} \sum_i \frac{|\hat m_i - m_i|_1}{W \times H \times C}.
$$
Results & Insights

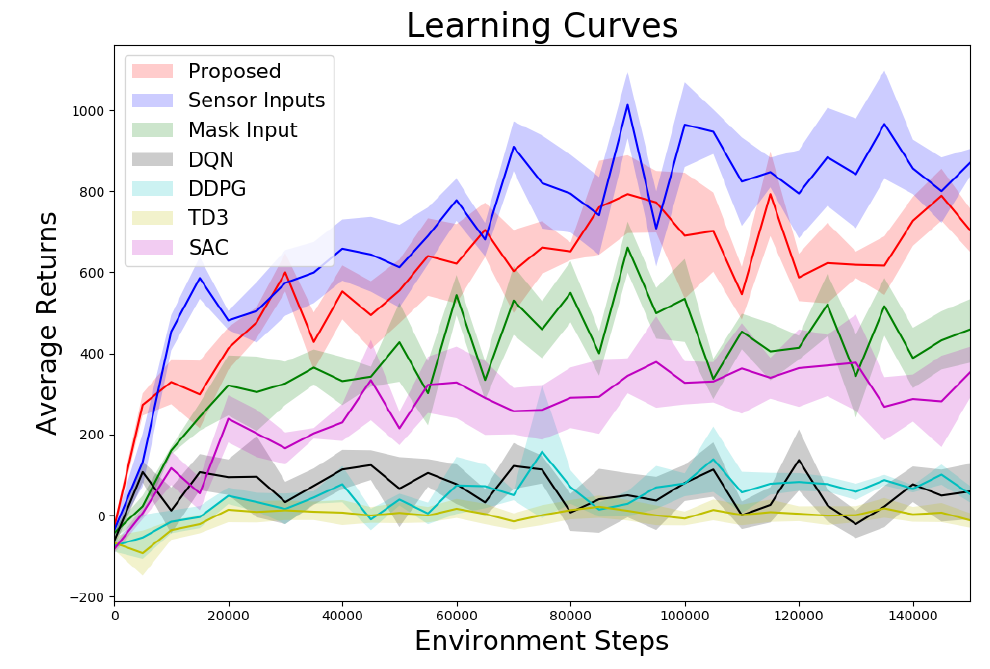

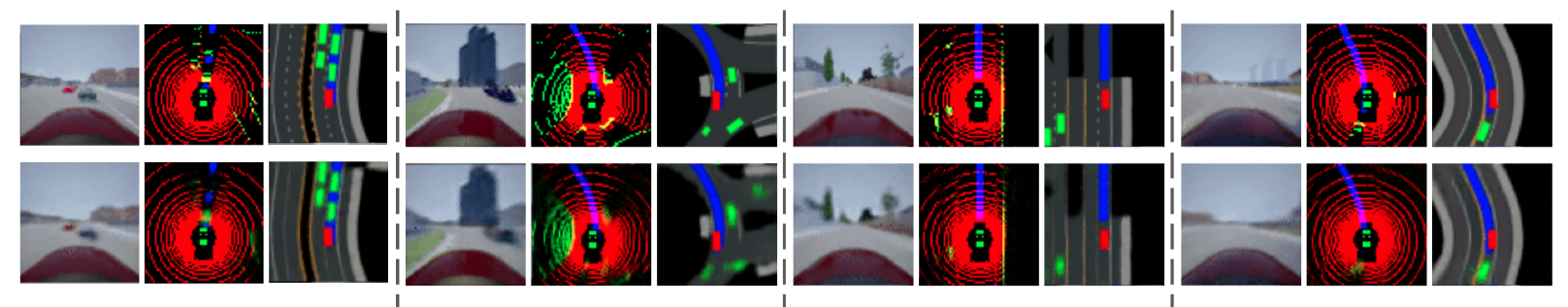

Reconstructions: decoded masks closely match ground-truth labels, capturing lanes, objects, and planned routes. Learning curves: latent MaxEnt RL converges faster and achieves higher asymptotic performance than standard end-to-end RL baselines (DQN, DDPG, TD3, SAC).
Findings:
- Efficiency. Learning in the latent space reduces sample complexity and accelerates training.
- Faithfulness. Decoded masks remain accurate across varied traffic scenes, enabling post-hoc auditing.
- Failure modes. Rare or occluded objects can lead to imperfect masks, often foreshadowing downstream control errors:contentReference[oaicite:4]{index=4}.
(B) ICCT — Interpretable Control via Differentiable Trees
While the latent model explains what is seen, the controller is still typically a black-box MLP. To address this, we introduce Interpretable Continuous Control Trees (ICCTs):contentReference[oaicite:5]{index=5}.
Core Design
- Decision nodes: crisp rules on a single feature, e.g. if speed > threshold.
- Leaves: sparse linear controllers $a_d = \sum_j \beta_{dj} x_j + \delta_d$.
- Differentiable training: start with “soft” (fuzzy) splits and gradually crispify into human-readable rules.

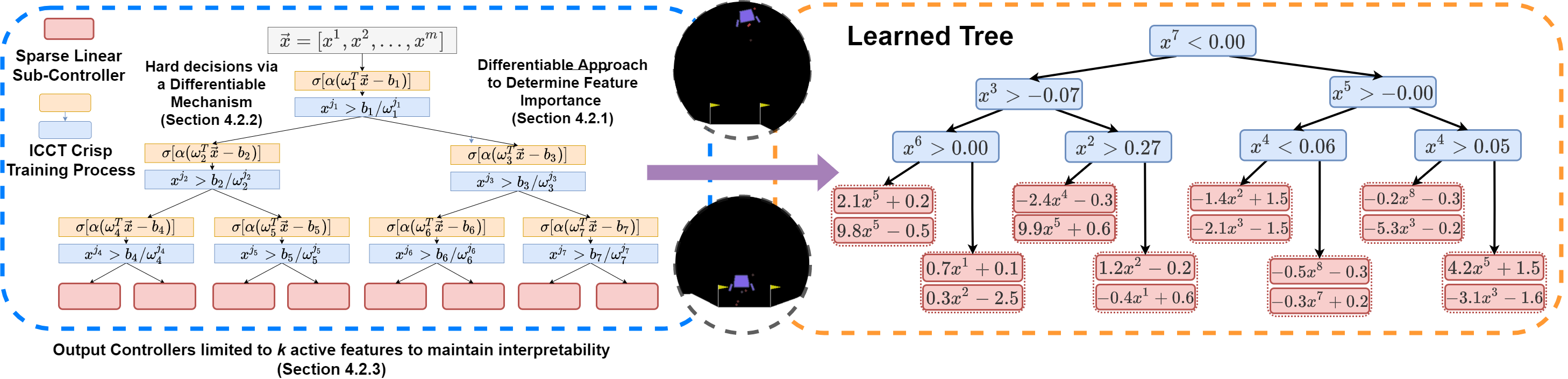

ICCT pipeline: differentiable decision-tree training with crispification. Each node splits on one interpretable feature; leaves are sparse linear controllers.
Algorithm (simplified)
1) NODE_CRISP: pick a single feature x_k and threshold b
2) OUTCOME_CRISP: branch left/right with a hard decision
3) ROUTE: follow nodes to reach a leaf controller
4) SPARSIFY: enforce k-hot selection for interpretability
5) ACTION: sample during training (exploration) or use leaf mean (exploitation)
Results

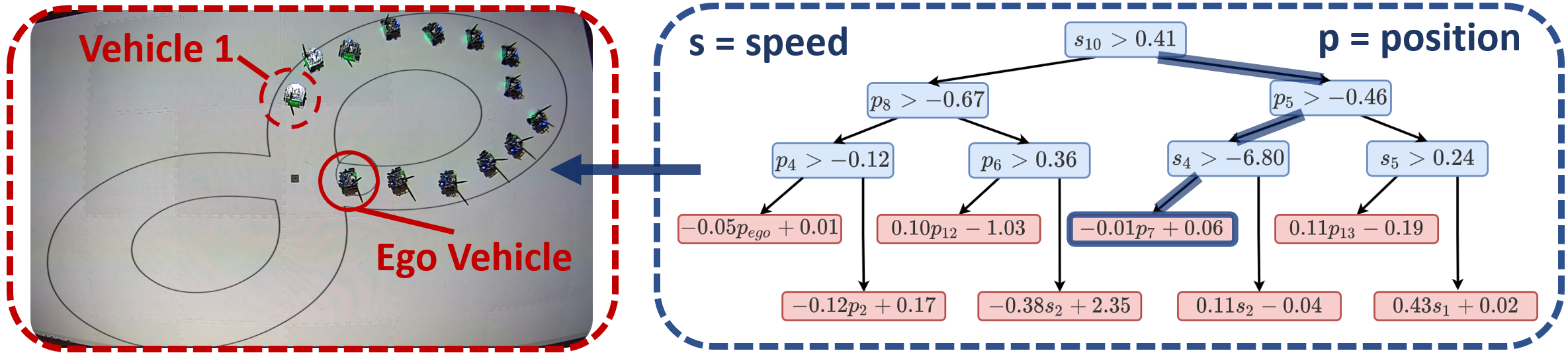

Physical demonstration: ICCT controlling the ego vehicle in a 14-car traffic scenario, showing interpretable real-world feasibility.

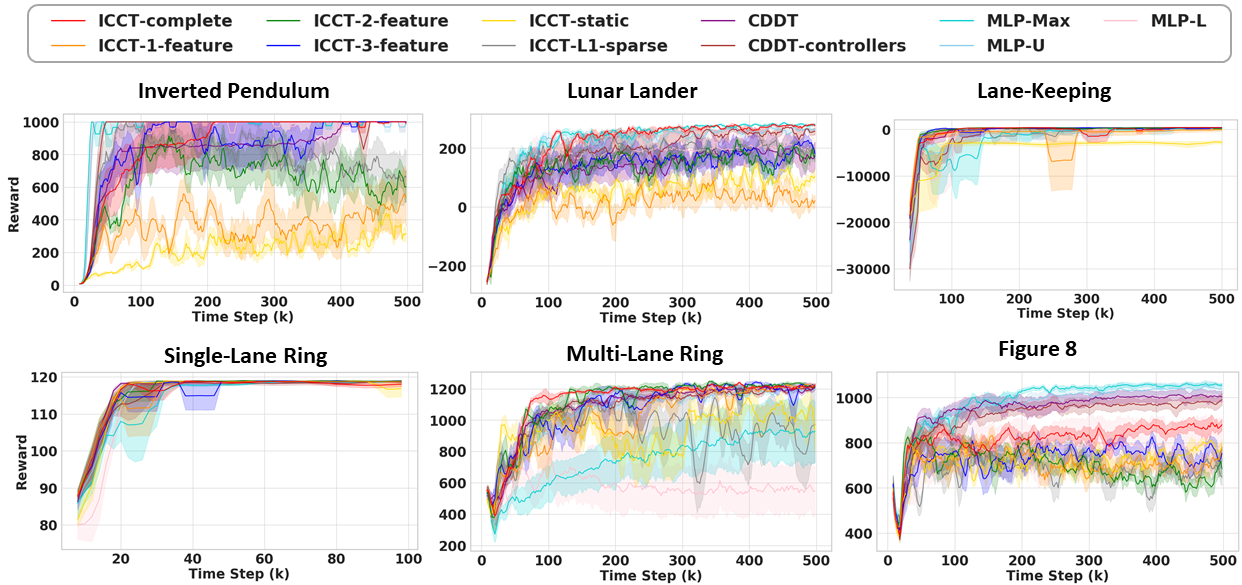

ICCT training curves across urban driving tasks. ICCT matches or surpasses black-box MLP baselines, despite orders-of-magnitude fewer parameters.
Key Highlights
- Performance. ICCT matches or even outperforms deep MLPs, with up to 33% gains in some driving benchmarks.
- Efficiency. Policies use 300×–600× fewer parameters, reducing memory and compute costs.
- Interpretability. Small trees with sparse linear controllers are auditable and amenable to formal verification.
Comparison & Synergy
The two approaches address complementary gaps:
-
Latent MaxEnt RL → explains what the agent perceives.
Limitation: the policy remains a black-box controller. -
ICCT → explains why the agent acts.
Limitation: assumes access to meaningful features.
Synergy. By chaining them — feeding semantic features from (A) into interpretable controllers in (B) — we can achieve a fully white-box perception-to-action pipeline.
Downloads
References
- Chen, Li, Tomizuka. Interpretable End-to-End Urban Autonomous Driving with Latent Deep RL. arXiv:2001.08726 (2020).
- Paleja, Niu, Silva, et al. Learning Interpretable, High-Performing Policies for Autonomous Driving. arXiv:2202.02352 (2023).
- Prakash, Avi, et al. Efficient and Generalized End-to-End Autonomous Driving with Latent Deep RL and Demonstrations. arXiv:2205.15805 (2022).
