Introduction: The Central Role of the Reward Signal

In Reinforcement Learning (RL), an agent learns to make decisions by interacting with an environment. The entire learning process is guided by a single scalar signal: the reward. This reward function is the most critical component of an RL problem, as it implicitly defines the task’s goal (Eschmann, 2021). It is the mechanism through which we communicate what we want the agent to achieve.

However, a poorly designed reward signal can be ineffective or even misleading. Imagine training a robot to navigate a maze where it only gets a reward at the very end. It could wander aimlessly for days without learning anything meaningful. This is the problem of reward sparsity, one of the biggest bottlenecks preventing RL from being applied to more complex, real-world problems, especially in continuous time and space domains (Doya, 2000).

This article explores Reward Shaping, a powerful class of techniques designed to solve this. Instead of letting the agent wander in the dark, we provide it with intelligent “hints” to guide it toward the goal, dramatically accelerating learning while, crucially, attempting to preserve the original task’s objective.

The Problem: Drowning in Silence with Reward Sparsity

Reward sparsity is a scenario where meaningful rewards are received only after completing a long and specific sequence of correct actions. In all other states, the agent receives a reward of zero. This creates a cascade of critical issues:

• Inefficient Exploration: In a high-dimensional state space, the probability of stumbling upon a rewarding state through random exploration is infinitesimally small. The agent gets no learning signal to update its policy.
• The Credit Assignment Problem: Even if the agent gets lucky and finds the reward, it’s nearly impossible to determine which of the thousands of preceding actions were crucial for success and which were irrelevant or detrimental.
• Complete Learning Failure: In most practical scenarios, the agent fails to discover the reward at all. Its performance flatlines, and it never learns to solve the task.

The fundamental challenge is this: how can we provide a denser, more informative signal to the agent without accidentally changing the optimal behavior or introducing unintended loopholes that the agent can exploit?

The Foundation: Potential-Based Reward Shaping (PBRS)

The most celebrated and theoretically-grounded solution is Potential-Based Reward Shaping (PBRS). This technique, introduced by Ng, Harada, and Russell (1999), provides a way to add an auxiliary reward to guide the agent without altering the optimal policy.

The core idea is to define a potential function $\Phi(s)$ that estimates the “value” or “promise” of being in a particular state $s$. The new, shaped reward $R’$ is then calculated by adding the change in potential to the original environment reward $R$.

$$R’(s, a, s’) = R(s, a, s’) + \underbrace{\gamma\Phi(s’) - \Phi(s)}_{\text{Shaping Reward}}$$

• $R(s, a, s’)$: The original (sparse) environment reward.
• $\Phi(s)$: The potential function, which maps states to a scalar value. For a maze-solving robot, $\Phi(s)$ could be defined as the negative Euclidean distance to the goal.
• $\gamma$: The discount factor from the underlying Markov Decision Process.

When the agent moves from a state $s$ to a more “promising” state $s’$, the potential $\Phi(s’)$ is higher than $\Phi(s)$, resulting in a positive bonus reward. This provides an immediate, dense signal that guides the agent in the right direction.

The Theoretical Guarantee: Policy Invariance The genius of PBRS lies in its theoretical guarantee of policy invariance. Ng et al. (1999) proved that any optimal policy learned with a potential-based shaped reward is also an optimal policy for the original, unshaped problem. This works because over any trajectory, the extra rewards form a telescoping sum that only depends on the start and end states, not the path taken. This ensures the long-term desirability of paths remains unchanged, making PBRS a “safe” way to accelerate learning.

Advanced Methods: Automating Reward Design

While PBRS is powerful, designing a good potential function often requires significant domain knowledge. To overcome this, researchers have developed advanced methods that automate reward design by framing it as a problem of optimization, exploration, or inference (Ibrahim et al., 2024).

Learning the Reward Function

Instead of manually defining rewards, these methods allow the reward function to be learned or adapted during training.

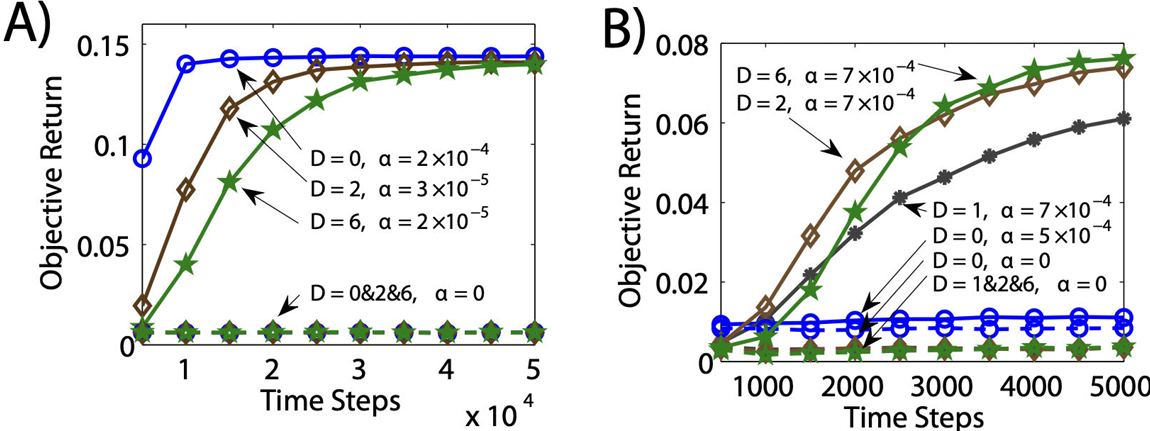

Policy Gradient for Reward Design (PGRD) Sorg, Lewis, and Singh (2010) proposed treating the reward function’s parameters $\theta$ as something to be optimized directly via gradient ascent. The objective is to find parameters that maximize the agent’s performance on the true, underlying task objective $R_O$.

$$\theta^* = \arg\max_{\theta} \lim_{N\to\infty} \mathbb{E}\left[ \frac{1}{N} \sum_{t=0}^{N} R_O(s_t) \mid R(\cdot;\theta) \right]$$

This elegantly reframes reward design as an online optimization problem, allowing the guidance to adapt to the agent’s changing abilities and the environment’s challenges.

Shaping for Intelligent Exploration

In problems where the main difficulty is not just sparsity but also finding novel states, the reward can be shaped to explicitly encourage exploration.

Novelty-Driven (Hash-Based Exploration) To encourage exploration in high-dimensional spaces, Tang (2017) introduced a method that rewards visiting low-count states. Since tracking visits for every unique state is impossible in continuous spaces, this method uses a hash function $\phi(s)$ to group similar states. The intrinsic reward is then inversely proportional to the visitation count of the state’s hash code, encouraging the agent to visit less-explored regions of the state space.

$$R_{int}(s) = \frac{1}{\sqrt{N(\phi(s))}}$$

Image Explanation: The graphs above compare the performance (mean average return) of the SimHash algorithm against a baseline (TRPO). In all three sparse-reward environments (MountainCar, SwimmerGather, HalfCheetah), the baseline completely fails to learn, indicated by a flat line at zero return. In contrast, SimHash successfully finds the sparse reward and achieves a high return, demonstrating the power of count-based exploration for solving these difficult tasks.

Uncertainty-Driven (RUNE) Another sophisticated approach is to reward the agent for taking actions that reduce its uncertainty about the reward function itself. In Reward Uncertainty for Exploration (RUNE), an ensemble of reward models is trained on human preferences. The agent is rewarded based on both the mean prediction of the ensemble (exploitation) and the standard deviation of the predictions (exploration). This explicitly drives the agent to explore areas where it is most uncertain about the potential rewards (Liang et al., 2022).

$$ R_{total} = \mathbb{E}_{i}\left[\hat{R}i\right] + \beta \cdot \text{Std}{i}\left[\hat{R}_i\right] $$

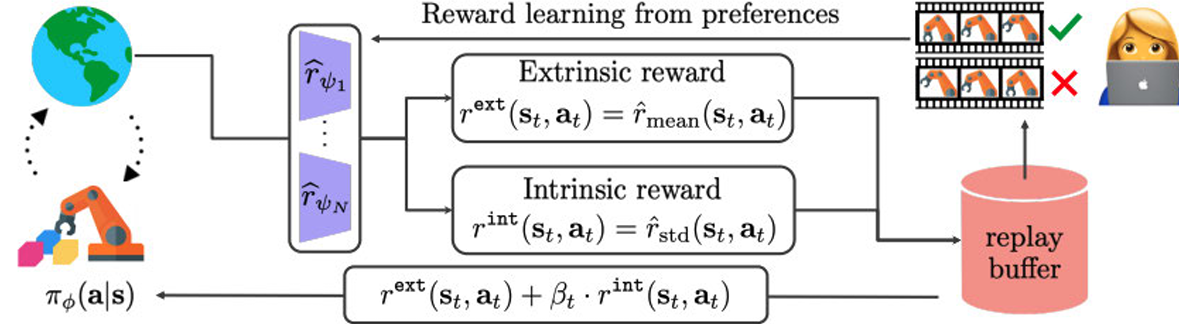

Image Explanation: This diagram illustrates the core concept of RUNE. The agent interacts with the environment, and its experiences are used to train an “ensemble” of several different reward function models, all trying to predict human preferences. When deciding on an action, the agent’s total reward is calculated in two parts: 1) the mean of the ensemble’s predictions, which encourages the agent to exploit what it already knows, and 2) the standard deviation of the predictions, which provides an intrinsic bonus for exploring states where the models disagree, signifying high uncertainty.

Image Explanation: This figure shows a common and efficient way to implement the ensemble of models in RUNE. Instead of training many separate networks, a single, shared network “trunk” processes the initial input (like an image from the environment). The output of this trunk is then fed into multiple small “heads,” with each head representing one model in the ensemble. This allows the models to share the bulk of the computational work while still maintaining their own unique final layers, enabling them to make diverse predictions and effectively calculate uncertainty.

Inferring True Objectives to Prevent Reward Hacking

Manually designed rewards are often flawed and can be exploited by agents, a problem known as reward hacking. To mitigate this, we can infer the “true” objective from expert demonstrations rather than specifying it directly.

Inverse Reinforcement Learning (IRL) IRL flips the standard RL problem on its head. Instead of using a reward function to find an optimal policy, IRL observes an expert’s policy to infer the reward function the expert was likely optimizing (Arora & Doshi, 2021). This is incredibly powerful for teaching agents complex behaviors where defining the reward explicitly is difficult, like driving a car. The goal is to find a reward function that makes the expert’s behavior appear near-optimal.

Conclusion & Key Takeaways

The journey to solve reward sparsity has pushed the field of RL from manual engineering to sophisticated, automated systems.

• Reward shaping is an essential technique for making RL practical in complex environments with sparse rewards.
• PBRS provides a safe, theoretically-grounded method to accelerate learning by providing dense “hints” without altering the optimal policy.
• Advanced methods automate reward design, offering greater autonomy and robustness. They allow agents to learn their own rewards, explore intelligently based on curiosity and uncertainty, and infer human objectives from demonstrations to avoid reward hacking.
• The continued evolution of these techniques is paving the way for more aligned, capable, and autonomous agents that can solve meaningful real-world problems.
